How To Install Generator To House (Step By Step)


Installing and connecting generators can be difficult sometimes, but How To Install Generator To House (Step By Step) is here to provide you with valuable information to help you on the way.

Steps how to install a Generator

The following are steps how to install a generator

Step 1.: Determine the plug amperage and type

You need to determine the type of plug to be used and the amperage.

How To Install Generator To House (Step By Step)

This depends on the size or capacity of the generator. The amperage is indicated in the vicinity of the plug.

Step 2.: Supplies

Depending on the type of generator to be installed, buy a UL-listed device that matches the control box and make sure that it has been validated and measured to perform the task as many insurance companies need the UL rating from insurance companies. Include materials;

How To Install Generator

Plug in the 2-pin circuit breaker (double) that fits the circuit breaker box, the cable (depending on the base and thickness), the input box of the amplifier and the sticker on the cable housing.

All of this depends on the size of the generator to be installed, which must match.

Step 3.: Drill or find the conduit hole

If the house does not have a channel hole, you will need to drill one. Drill the conduit hole as close to the plate as possible. A hammer drill helps drill the hole.

Step 4.: Installation of the power input box

Cover the front cover of the power input housing and make the blind hole on the PVC connection. You can use a waterproof plug or glue, both work perfectly.

The required material is the power input box.

Step 5.: Glue conduit and test fit

Glue the line to the required length with a hacksaw. Do not stick them until you have checked the correct size. Then attach it after checking the measurement.

Step 6.: Wire the generator input connector

Wait for the glue to dry, then run the wiring. Remove the cover of the lead body, pull the wires one by one and connect them to the connector on the way.

Remove at least three-quarters of the insulation. Tighten the clamps with a large screwdriver or nut.

Step 7.: Push the wiring in

Push the cables individually through the duct into the house, check that the cables fit properly, and then replace the cover of the duct housing.

The spaces between the canal and the house must be filled with silicone or expansive form.

Step 8.: Prepare the cable switch box

Turn off the main power and ranch switches, remove the switch front panel by removing the four screws.

How To Install Generator switch

Then remove a blind hole and screw the cable adapter. Then pull all cables to the box through the cable.

Step 9.: Create an open space for switches

This requires that most of the top and right switch areas are clear. If you move one or two switches down, enough replacement cables can be used.

If there is not enough space, use a short piece of cable that is insulated.

Step 10.: Installation of switches and cables for the generator

Install the switch in the free space at the top right of the switch box.

installation Generator

The red wire goes to one connector and the black to the other, the white to the common connection bar in the box and the green to the ground bar.

Step 11.: Install the hold switch

This is used to prevent the switch from moving

Step 12.: Install the interlock on the control panel cover

Replace the control panel and the switches that are in the off position and move the generator switch to the main off position.

Turn the switch off and drop the slider so you don’t turn it on. If it doesn’t turn on immediately with a five-second pause, that’s fine.

With all of this, it is okay to configure the generator, and it has been installed to start working.

How to hook up a portable generator to a house

How To Install Generator To House (Step By Step)

Wire the system by using the essential appliances and start by considering an interlocking kit that will need much care and only if approved in your area.

However, you can choose to use a manual transfer switch that is professionally fixed.

Do an installation of the inlet box hook up that will go to the outside of the house and will need a recessed male connector that connects to any panel system that has been installed in the house.

How to connect a generator to a house without a transfer switch

Ensure you are not using a male to male plug and do not have plans of connecting the generator directly to the circuit breaker in a fuse box.

Check out generator installation kit on Amazon

Check your generator’s plug type and amperage that is found near your plug.

The big round plug powers the breaker box on both sides. Make the materials adjustments to tour preference

Drill a hole to serve as access that allows wires from your generator to go directly into the house. It should be large to perfectly fit the wires. If the wall is so thick, use a hammer drill.

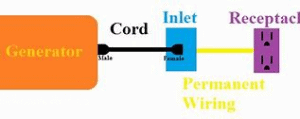

generator to power

Assemble the other materials. First, mount your power inlet box onto the exterior wall and should be some feet from the drilled hole. Ensure it is watertight.

Bring the conduit and use glue to properly attach them together for safety.

The wiring of the generator inlet plug is next. Pull one wire after the other from the conduit body then push the wires that should go inside.

The breaker box should then be prepared to receive the wires. Properly install the wires and the breaker retainer then cover it.

Connect the generator to a house through dryer outlet

generator to a breaker box

Turn off the main power switch on the circuit breaker and keep it in the same position while you use the generator

The generator is to be placed at least 5 feet and most 10 feet far from the house to avoid your house from being polluted by carbon monoxide from the exhaust.

The extension cord is to be plugged into the outlet that is on the panel of your generator. The other end, plug it into the dryer outlet.

Set the OFF position on the individual circuit breakers of the home’s circuit breakers except for the circuits you need to power. You should set the dryer’s outlet circuit to position ON.

Turn the generator on to feed your home with power.

How to a powerhouse with a portable generator

Start by connecting the generator cord directly to the inlet box or the transfer switch

Turn all the switches of the circuit breakers that are in the transfer switch to OFF position for safety purposes

Check out generator installation kit on Amazon

Start the generator and give it time to warm up

Flip the main breakers that are in the transfer switch to remain at the generator position for functionality.

Turn the circuits you need to power for use to the ON position one at a time because this is important to prevent the generator from overloading. You can now enjoy working in a powered house.

How to wire a generator to a breaker box

How to wire a generator to a breaker box panel

Switch off the main power supply that leads to the house and uses a voltmeter for testing electricity termination into the breaker box

Strip the 8/3 cable by half an inch beginning from the end exposing the wires using a stripper tool and strip ends of the three wires.

Screw two black wires to your circuit breaker securely. Each screw will hold one black wire

Do an installation of the breaker into your service panel. Set your breaker in its housing in the panel where you will want it to stay.

Rock back and forth the circuit by inserting a tabbed end of your breaker in the housing then snap the rest of your breaker over on the hot bus bar.

Examine the double pole breaker and ensure it fits snug.

Thread your ground wire via the ground bar then run the wire to end of the volt receptacle that is in the breaker box and screw the wire.

Run 8/3 cable to an outlet you’ll want your generator to plug into. Attach the black wires to the uncolored screws and attach your ground wire to the screw colored green.

Attaching the outlet on the wall after securing the 8/3 cable and turn on the main power supply then push the breaker to ON position.

How to connect a portable generator to an electrical panel

Have a generator interlock for safety purposes when connecting the generator by yourself.

Relocate the existing breakers by isolating the electricity from your general power grid

Check out generator installation kit on Amazon

Install the feedback circuit breakers r the service cable. This will route the service cable from the main panel to a power inlet

Install the power inlet box

Install your interlock kit

How to wire a generator transfer switch

transfer switch

Decide the home appliances that can be accessed by the generator

Get to the fuse box and calculate the amount of power the generator will demand to run every device on its own.

Check if the amperage of power needed exceeds the capacity of the generator. It shouldn’t.

On each appliance and the corresponding circuit breaker mark on each a similar number

Cut your main power supply from flowing to the circuit breaker

Remove the cover of the circuit breaker and that of the switch

Keep Reading How To Install Generator To House (Step By Step) for more info.

Trim the insulating tube that will cover your wires of the unit to a reasonable length

Attach the wires to the connectors with PVC cement. Use the wiring harness of the transfer switch to connect the circuit breaker to the unit.

Place transfer switch to the wall where you are to install it and do labeling of placement of mounting screws and mount it using screws.

Generator To House installation

Pull wires to pass through the insulating tube and trim 1.6 cm of the insulator of every wire and join them to the transfer switch following the labels created earlier and label each as per the appliance it supplies to.

Attach the other black wires to utility 2 pole breaker to transfer switch and join the white wire to neutral found at the center of your transfer switch. You should join the green wire to a grounding bar on the left of the lower side of the switch.

Return the switch’s cover back and check that the power supply is disconnected at the main load center.

Detach the wires assigned for every appliance from your circuit breaker box and trim 1.6 inches from the insulator of each wire.

Use wire connectors to attach to transfer switch while following the labels and join the other black wires to the other 2 pole breakers. Detach the 2 pole breakers from where you should remove every appliance wire assigned.

Attach the white wire to the neutral bar and the green to the ground bar. Return the main circuit breakers cover and return the power on

Back feeding generator

Back feeding generator

You need to be helped by an electrician and know all wattages and voltages needed to avoid overloading the generator

Turn off main breakers in the circuit breaker box panel.

Generator operation should be done far from the house.

Turn off all appliances and lights

Check out generator installation kit on Amazon

Place one cord into 120 v wall outlet you intend to use for back feeding and the other into the 120 V outlet of the generator and start the generator and begin testing with a lamp to find any that works. Click here to learn about the generator deal online.

Note: Read carefully the manual’s instructions of your generator and ask the help from an expert if you are not sure. You can find the most reputable generator brands’ manuals here.
